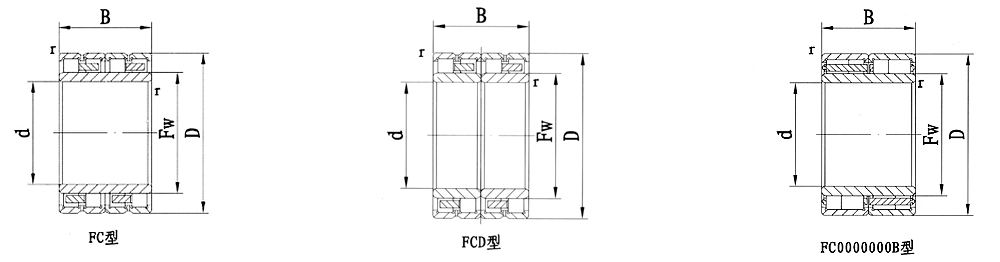

Shaft Dia | Bearing code | Boundary dimensions (mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(KG) | Equivalent to foreign models | |||||||||
New | Old | d | D | B | Fw | rmin | Cr | Cor | Lubrication | Set | Single | ||||
Grease | Oil | SKF | FAG | ||||||||||||
FC182874 | 672718 | 90 | 140 | 74 | 105 | 1.5 | 220 | 450 | 3600 | 4300 | 4.23 | 1.32 | |||
100 | FC202870 | 672820K | 100 | 140 | 70 | 111 | 1.5 | 220 | 480 | 3400 | 4000 | 3.2 | 0.98 | ||
FC202880 | 100 | 140 | 80 | 111 | 1.5 | 220 | 480 | 3400 | 4000 | 3.5 | 1.11 | ||||
FC2028104 | 672820 | 100 | 140 | 104 | 111 | 1.5 | 310 | 770 | 3400 | 4000 | 4.79 | 1.46 | |||
FCD202880A | 100 | 140 | 80 | 113 | 1.5 | 200 | 470 | 3400 | 4000 | 3.4 | 0.56 | ||||
FC202970 | 672720 | 100 | 145 | 70 | 113 | 1.5 | 230 | 470 | 3400 | 4000 | 3.61 | 1.18 | |||
FC2030106 | 100 | 150 | 106 | 113 | 1.5 | 370 | 790 | 3400 | 4000 | 6.43 | 1.78 | ||||
110 | FC223490 | 672722K | 110 | 170 | 90 | 127 | 2 | 390 | 760 | 2800 | 3600 | 7.16 | 2.21 | ||
FC2234120 | 672722 | 110 | 170 | 120 | 127 | 2 | 520 | 1160 | 2800 | 3600 | 9.75 | 2.93 | |||
120 | FC243692 | 120 | 180 | 92 | 137 | 2 | 380 | 800 | 2600 | 3400 | 7.79 | 2.43 | |||
FC2436105 | 672724 | 120 | 180 | 105 | 135 | 2 | 430 | 920 | 2600 | 3400 | 9 | 2.44 | |||
130 | FC2640104 | 130 | 200 | 104 | 150 | 2 | 480 | 1020 | 2400 | 3000 | 11.5 | 3.52 | |||
FC2640125 | 6672126 | 130 | 200 | 125 | 149 | 2 | 630 | 1370 | 2400 | 3000 | 14 | 4.04 | |||
140 | FC2838119 | 140 | 190 | 119 | 154 | 2 | 470 | 1280 | 2400 | 3000 | 9.45 | 2.95 | |||
FC284280 | 140 | 210 | 80 | 156 | 2 | 500 | 970 | 2200 | 2800 | 9.4 | 2.29 | ||||
FC2842106 | 140 | 210 | 106 | 158 | 2 | 540 | 1150 | 2200 | 2800 | 12.6 | 3.43 | ||||
FC2842125 | 6672128 | 140 | 210 | 125 | 158 | 2 | 640 | 1440 | 2200 | 2800 | 14.9 | 4.05 | |||
FC2842155 | 140 | 210 | 155 | 158 | 2 | 790 | 1860 | 2200 | 2800 | 17.5 | 5.03 | ||||
145 | FC2942155 | 145 | 210 | 155 | 166 | 2 | 620 | 1740 | 2200 | 2800 | 18.4 | 6.15 | 314625 | 511605 |
