Four row cylindrical roller bearing
PRODUCT

Four row cylindrical roller bearing (190～210mm)

Product introduction ：...
Product details：

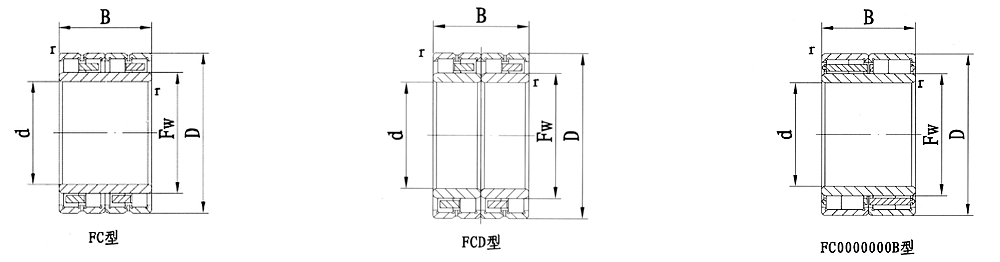

Shaft Dia Bearing code Boundary dimensions （mm） Basic load ratings(kN) Limiting speeds(rpm) Mass(KG) Equivalent to foreign models
 New Old  d D B Fw rmin Cr  Cor  Lubrication Set Single
Grease Oil  SKF FAG
190 FC3853124 190 265 124 213 2.1 660 1720 1700 2000 20.7 6.93
FC3854168 190 270 168 212 2.1 1040 2720 1700 2000 30 9
FC3854168B 190 270 168 212 2.1 1070 2810 1700 2000 32.6 9
FC3854200 672738 190 270 200 212 2.1 1210 3300 1700 2000 36.8 10.8 314199B 508657
FC3854200B 190 270 200 212 2.1 1300 3620 1700 2000 39.5 10.8
FC3856200 190 280 200 214 2.1 1240 3200 1700 2000 41.8 11.7 314049A 510199
FCD3858200 190 290 200 217 2.1 1360 3330 1700 2000 48.6 6.73
200 FC4054170 200 270 170 222 2.1 810 2460 1600 1900 28.3 9.55 314553 522742
FC4056170 200 280 170 222 2.1 1030 2730 1600 1900 32.1 9.55 314385 507344
FC4056188 200 280 188 222 2.1 1140 3120 1600 1900 35.1 10.6
FC4056200 200 280 200 222 2.1 1230 3420 1600 1900 37.5 11.3 313893 508726
FC4056200A 200 280 200 224 2.1 1210 3610 1600 1900 39.2 12.2
FC4058130 200 290 130 226 2.1 860 2030 1600 1900 27.6 8.73
FC4058192 672740 200 290 192 226 2.1 1240 3250 1600 1900 41.6 12.8 313811 512580
FCD4058192 200 290 192 226 2.1 1240 3250 1600 1900 41.6 6.4
FC4058192B 200 290 192 226 2.1 1320 3540 1600 1900 44.8 12.8
210 FC4258192 210 290 192 234 2.1 1090 3210 1500 1800 38.3 12.4
FC4260170 210 300 170 234 2.1 1160 2950 1500 1800 38.1 11
FC4260210 672742 210 300 210 234 2.1 1400 3800 1500 1800 47.6 13.6
FCD4260210 210 300 210 234 2.1 1400 3800 1500 1800 47.6 6.71
