Four row cylindrical roller bearing
PRODUCT

Four row cylindrical roller bearing (320～360mm)

Product introduction ：...
Product details：

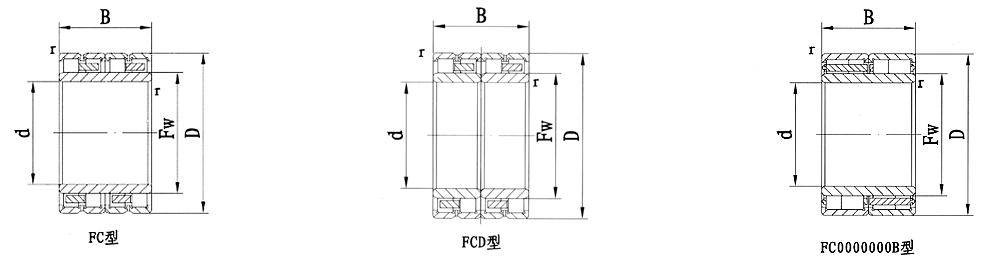

Shaft Dia Bearing code Boundary dimensions （mm） Basic load ratings(kN) Limiting speeds(rpm) Mass(KG) Equivalent to foreign models
 New Old  d D B Fw rmin Cr  Cor  Lubrication Set Single
Grease Oil  SKF FAG
320 FC6488240B 320 440 240 351 4 2435 7190 850 1000 117 30.2
FCD6488300 320 440 300 352 4 2720 8280 850 1000 135 19.5
FC6490240 320 450 240 355 4 2260 6280 850 1000 118 34.4
FCD6490240 320 450 240 355 4 2260 6280 850 1000 118 16.9
FCD6492300 320 460 300 357 4 2940 8430 850 1000 164 22.8
FCD6492340 320 460 340 360 4 3350 10020 850 1000 186 28.1
FCD6496290 320 480 290 364 4 3260 8680 800 1000 181 26.7
FCD6496350 320 480 350 364 4 3210 9140 800 1000 228 31.7 314274B 513654
330 FCD6692340 330 460 340 365 4 3190 9820 800 1000 174 25 313445C 521593A
340 FC6890250 340 450 250 364 4 2270 6630 800 1000 103 25.5
FCD6890250A 340 450 250 369 4 2130 6460 800 1000 104 15.4
FCD6890250A1 340 450 250 371 4 2120 6790 800 1000 107 16.7
FC6890250A2 340 450 250 366 4 2260 6640 800 1000 105 28
FC6890250A1 340 450 250 371 4 2120 6790 800 1000 107 33.4
FCD6892260 340 460 260 370 4 2340 6960 800 1000 122 16.7
FCD6896280 340 480 280 374 4 2840 7870 750 950 159 20.6
FCD6896350 340 480 350 378 4 3410 10410 750 950 201 28.9 314485A 527634
350 FCD70100380 350 500 380 389 4 4030 12040 700 900 243 33.4 314563
FCD70104300 350 520 300 401 4 3300 9070 700 900 223 34.8 BC2B319878
360 FCD72100250 360 500 250 394 4 2480 6730 700 900 146 19.3 BC2B320075
