Double row angular contact ball bearing
PRODUCT

Double row angular contact ball bearing (40°,140～1

Product introduction ：...
Product details：

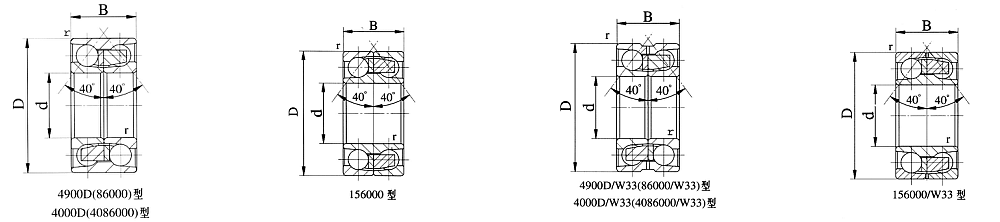

Shaft Dia Bearing code Boundary dimensions （mm） Basic load ratings(kN) Limiting speeds(rpm)  Mass(KG) Equivalent to foreign models Equivalent to other plants
New Old  d D B rmin Cr  Cor  Lubrication
86000/4086000 156000 Grease Oil SKF FAG 家型号
140 4928X3D 86728 140 209.5 66 2 134 237 1800 2400 8.28 309515D 538854
4028D 4086128 140 210 69 2 124 217 1800 2400 10.1
150 156730K 150 210 56 2 106 197 1600 2000 6.3
4030X2D 86730 150 225 73 2.1 159 280 1600 2200 10.5 305286D 510776A
4030D 4086130 150 225 75 2.1 159 280 1600 2200 10.8
4030X3D 86830 150 230 70 2.1 158 280 1600 2200 11.1 305283D 506963
156730 150 240 84 2.1 251 340 1450 1850 16 305248 504083
160 156932 160 215 56 2 85 166 1600 2000 6
156132 160 240 76 2.1 190 340 1450 1850 12.5 305183 507511
4032D 4086132 160 240 80 2.1 171 305 1500 2000 13
170 156734H 170 230 56 2 105 205 1450 1850 7
4934X3D 86734 170 259.5 84 2.1 208 385 1400 1900 16.7
156134 170 260 84 2 208 385 1300 1700 16.5 305180 503288
4034D 4086134 170 260 90 2.1 208 385 1400 1900 18.1 538853
180 156936 180 250 70 2 140 230 1300 1800 10.2 305455B 508893
4936X3D 86736 180 259.5 66 2.1 153 293 1300 1800 12 305262D 509059A
156836 180 259.5 80 2.1 180 340 1250 1600 14.5
156136 180 280 92 2.1 237 450 1150 1500 22 305172B
4036D 4086136 180 280 100 2.1 240 451 1300 1800 23.6
