Double row angular contact ball bearing
PRODUCT

Double row angular contact bearing（40°,280～320m

Product introduction ：...
Product details：

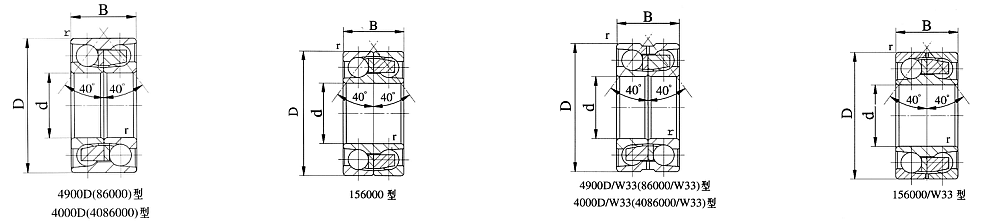

Shaft Dia Bearing code Boundary dimensions （mm） Basic load ratings(kN) Limiting speeds(rpm)  Mass(KG) Equivalent to foreign models Equivalent to other plants
New Old  d D B rmin Cr  Cor  Lubrication
86000/4086000 156000 Grease Oil SKF FAG 家型号
280 4956X3D 86756 280 389.5 92 4 278 650 850 1100 27.4 305269D 508730 86756K
4056D 4086156 280 420 140 4 383 947 850 1100 72
300 4060D 4086160 300 460 160 4 425 1098 770 1060 103
320 4064X3D 86764 320 459.5 140 4 396 1022 740 1000 79.9
4064D 4086164 320 480 160 4 432 1142 740 1000 109
