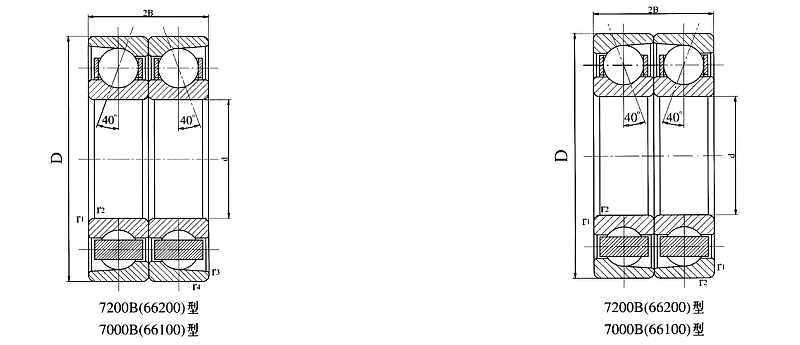

Single row angular contact ball bearing
PRODUCT

Single row angular contact ball bearing (100～220mm

Product introduction ：...
Product details：

Shaft Dia Bearing code Boundary dimensions （mm） Basic load ratings(kN) Limiting speeds(rpm) Mass(KG)
New O d Old d New d Old Cr Cor Lubrication SKF FAG
Grease Grease
100 7220B 66220 100 180 68 2.1 1.1 40 212 183 2200 3200 6.8 2×7220BG
105 7221B 66221 105 190 72 2.1 1.1 40 229 204 2000 3000 8.2 2×7221BG
110 7222B 66222 110 200 76 2.1 1.1 40 251 228 1900 2800 9.6 2×7222BG
120 7024B 66124 120 180 56 2 1 40 140 137 1800 2600 4.8 2×7024BG
7224B 66224 120 215 80 2.1 1.1 40 270 255 1700 2400 12.2 2×7224BG
130 7226B 66226 130 230 80 3 1.1 40 302 305 1700 2400 13.9 2×7226BG
140 7028B 66128 140 210 66 2 1 40 178 183 1600 2200 7.6 2×7028BG
7228B 66228 140 250 84 3 1.1 40 296 305 1600 2200 17.7 2×7228BG
150 7030B 66130 150 225 70 2.1 1.1 40 195 196 1500 2000 9.4 7030B/DFCA
7230B 66230 150 270 90 3 1.1 40 319 340 1500 2000 22.2 2×7230BG
160 7232B 66232 160 290 96 3 1.1 40 325 360 1300 1800 27 2×7232BG
170 7234B 66234 170 310 104 4 1.5 40 358 415 1200 1700 34 2×7234BG
180 7036B 66136 180 280 92 2.1 1.1 40 319 360 1100 1600 20 2×7036BG
7236B 66236 180 320 104 4 1.5 40 410 490 1100 1600 35 2×7236BG
190 7038B 66138 190 290 92 2.1 1.1 40 325 375 1100 1600 21 2×7038BG
7238B 66238 190 340 110 4 1.5 40 442 540 1000 1500 42 2×7238BG
200 7040B 66140 200 310 102 2.1 1.1 40 364 440 1000 1500 27 7040B/DFCA
220 7044B 66144 220 340 112 3 1.1 40 416 530 950 1400 36 2×7044BG
7244B 66244 220 400 130 4 1.5 40 520 710 900 1300 74 2×7244BG
