Four point angular contact ball bearing
PRODUCT

Four point angular contact ball bearing（35°,175～240

Product introduction ：...
Product details：

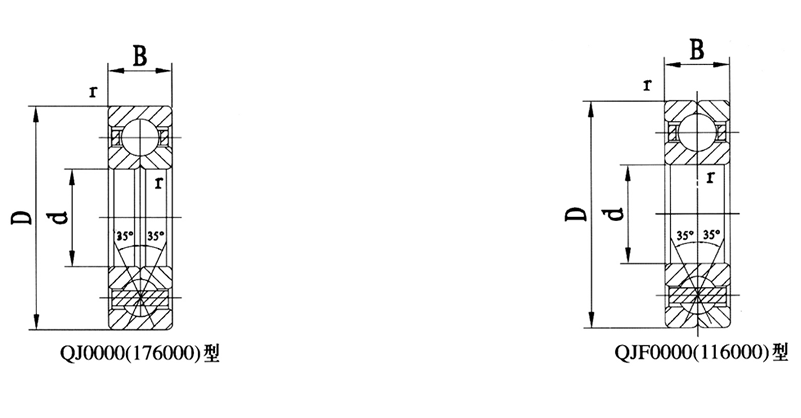

Shaft Dia Bearing code Boundary dimensions （mm） Basic load ratings(kN) Limiting speeds(rpm) Mass(KG) Equivalent to other manufacturers
 New Old  d D B rmin  Cr  Cor  Lubrication
QJ0000 QJF0000 176000 116000 Grease Oil
175 176735 175 259.5 40 2.1 210 380 1300 1800 8.34
180 QJ1036X1 QJF1036X1 176736 116736 180 279.5 46 2.1 250 365 1200 1600 9.92
QJ1036 QJF1036 176136 116136 180 280 46 2.1 250 365 1200 1600 9.92
1116936K 180 249.5 33 2.1 175 345 1300 1800 4.8
116936 180 259.5 52 2.1 170 330 1300 1800 9.3 116736
190 116738K 190 269.5 55 3 200 395 1200 1600 10.5
QJ1038X1 QJF1038X1 176738 116738 190 289.5 46 2.1 260 380 1100 1500 11.4
QJ1038 QJF1038 176138 116138 190 290 46 2.1 260 380 1100 1500 11.4
200 116740K 200 289.5 58 2.1 235 415 1100 1500 13.2 116740
QJ1040X1 QJF1040X1 176740 116740 200 309.5 51 2.1 305 475 1000 1400 15.2
QJ1040 QJF1040 176140 116140 200 310 51 2.1 305 475 1000 1400 15.2
116940 200 280 51 2.1 210 420 1100 1400 10.2
220 176844 220 300 60 3 160 340 1000 1400 12.2
116844 220 300 60 3 160 340 1000 1400 12.2 116944
176944 220 309.5 60 3 215 430 1000 1400 14.8
116944 220 309.5 60 3 215 430 1000 1400 14.8 116744
QJ1044X1 176744 220 339.5 56 3 450 620 1000 1400 18
QJ1044 QJF1044 176144 116144 220 340 56 3 450 620 1000 1400 18
240 176748K 240 329.5 60 3 230 480 1000 1400 15.3
116748K 240 329.5 60 3 230 480 1000 1400 15.3 116748
