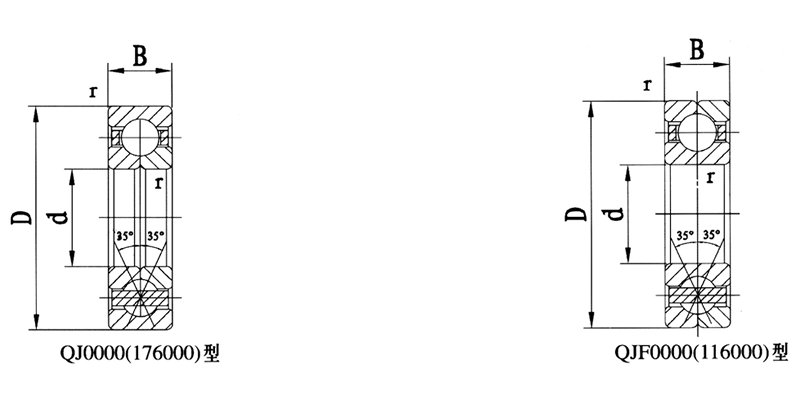

Shaft Dia | Bearing code | Boundary dimensions (mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(KG) | Equivalent to other manufacturers | ||||||||
New | Old | d | D | B | rmin | Cr | Cor | Lubrication | ||||||
QJ0000 | QJF0000 | 176000 | 116000 | Grease | Oil | |||||||||
240 | 176848 | 240 | 340 | 60 | 4 | 270 | 580 | 950 | 1300 | 17.3 | ||||
116848 | 240 | 340 | 60 | 4 | 270 | 580 | 950 | 1300 | 17.3 | 116748K | ||||
QJ1048X1 | QJF1048X1 | 176748 | 116748 | 240 | 359.5 | 56 | 3 | 460 | 655 | 950 | 1300 | 21 | ||
QJ1048 | QJF1048 | 176148 | 116148 | 240 | 360 | 56 | 3 | 460 | 655 | 950 | 1300 | 21 | ||
260 | 176952 | 260 | 369.5 | 60 | 4 | 300 | 660 | 950 | 1300 | 22.7 | ||||
116952 | 260 | 369.5 | 60 | 4 | 300 | 660 | 950 | 1300 | 22.7 | 116752 | ||||
QJ1052X1 | 176752 | 260 | 399.5 | 65 | 4 | 510 | 765 | 850 | 1200 | 31 | ||||
QJ1052 | QJF1052 | 176152 | 116152 | 260 | 400 | 65 | 4 | 510 | 765 | 850 | 1200 | 31 | ||
116852 | 260 | 359.5 | 65 | 2.1 | 280 | 630 | 850 | 1200 | 22.2 | 116852X3 | ||||
280 | 176856 | 280 | 375 | 65 | 4 | 235 | 525 | 850 | 1200 | 21 | ||||
116856 | 280 | 375 | 65 | 4 | 235 | 525 | 850 | 1200 | 21 | 116956 | ||||
QJ1056X1 | QJF1056X1 | 176756 | 116756 | 280 | 419.5 | 65 | 4 | 540 | 835 | 800 | 1000 | 34.7 | ||
QJ1056 | QJF1056 | 176156 | 116156 | 280 | 420 | 65 | 4 | 540 | 835 | 800 | 1000 | 34.7 | ||
116956 | 280 | 389.5 | 65 | 4 | 300 | 700 | 800 | 1000 | 25.5 | 116756YS | ||||
300 | 176860 | 116860 | 300 | 420 | 65 | 4 | 355 | 870 | 800 | 1000 | 29.3 | 176760/116760 | ||
QJ1060X1 | QJF1060X1 | 176760 | 116760 | 300 | 459.5 | 74 | 4 | 630 | 1040 | 700 | 950 | 47 | ||
QJ1060 | QJF1060 | 176160 | 116160 | 300 | 460 | 74 | 4 | 630 | 1040 | 700 | 950 | 47 | ||
320 | 176864 | 116864 | 320 | 440 | 65 | 4 | 360 | 900 | 700 | 950 | 31 | 176764/116764 | ||
QJ1064X1 | QJF1064X1 | 176764 | 116764 | 320 | 479.5 | 74 | 4 | 650 | 1090 | 650 | 850 | 49.5 | ||
QJ1064 | QJF1064 | 176164 | 116164 | 320 | 480 | 74 | 4 | 650 | 1090 | 650 | 850 | 49.5 |
