Back lining bearing
PRODUCT

Back lining back Catalog 1/2

Product introduction ：...
Product details：

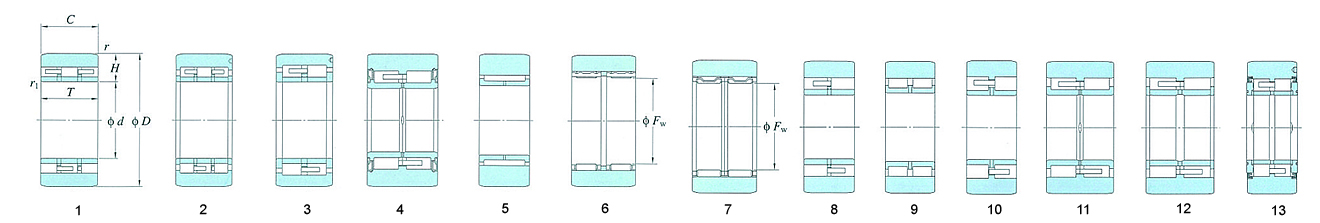

Boundary dimensions(mm) Basic load ratings(KN) Nominal Model Pic Installation(mm)
H 		Mass
(kg) 		Bearing Required
d(Fw) D T C r r1 Cr Cor
(18) 35 - 46 0.5 - 33.8 52 RBNTB3.60746 6 8.4875 0.225 24
(25) 51 38 37 0.8 0.5 47 74 BNUB51038X2 11 13.000 0.390 104
(28) 48 - 55 0.8 - 44.5 93.3 RBNTB061055 7 9.9875 0.468 128
(35) 60 - 65 0.8 - 68 136 RBNTB71265 7 12.500 0.83 64
31.75 76.2 46.23 45.85 0.8 1.5 96.3 183 BNTB061549 9 22.200 1.27 40
(38) 80 54 54 0.8 0.8 107 184 BNTB7.61654 1 21.000 1.5 88
(45) 85 - 55 0.8 - 59.1 160 RBNTB091755 7 19.9925 1.69 128
50 120 80 80 1.5 1.5 268 379 BNUP102480 3 34.976 5.15 32
50 120 85 85 1.5 1.5 303 427 BNUP102485 3 34.984 5.40 32
54.999 120 25.999 25.999 1.6 1.6 77.7 138 BNUP112426-2LS 13 32.4672 1.69 24.56
55 120 52.197 52 1.6 1.6 203 341 BNUP112452 9 32.483 3.27 40
60 160 95 95 1.5 2 398 589 BNUP123295 3 46.484 11.5 (20)
62 155 90 90 1 2 356 529 BNUP123190 3 46.484 9.97 (8)
62 155 110 110 1 2 404 622 BNUP1231110 2 46.484 12.2 (34)
65 165 70 70 1.5 2 424 586 BNTB133370 10 49.982 8.83 40
65 170 100 100 2 2 398 597 BNUP1334100 3 52.480 13.5 30
70 160 75 75 1.5 1.5 305 416 BNUP143275 12 44.977 10.1 32
70 160 90 90 1.5 1.5 379 667 BNTB143290 1 45.000 10.5 32,48,72
90 220 94 94 2 1.5 687 997 BNTB184494 10 64.976 21.2 40
90 220 120 120 3 3 650 115 BNUP1844120 12 65.000 26.0 32
90 220 95 95 2 2 532 795 BNUP184495 3 64.982 20.9 40
90 220 130 130 2 2 699 1130 BNTBP1844130 2 64.982 28.7 32,40
90 230 100 100 2 3 643 982 BNUP1846100 3 69.980 24.2 (24)
90 260 125 125 2 2 923 1520 BNUP1852125 3 84.970 41.3 34
80 180 100 100 2 2 478 871 BNTB1636100 1 50.000 14 20
90 180 100 100 2 2 460 840 BNTB1836100 12 45.000 13 20
90 200 134 134 2 2 650 1150 BNTB1840134 1 55.000 18.9 16
